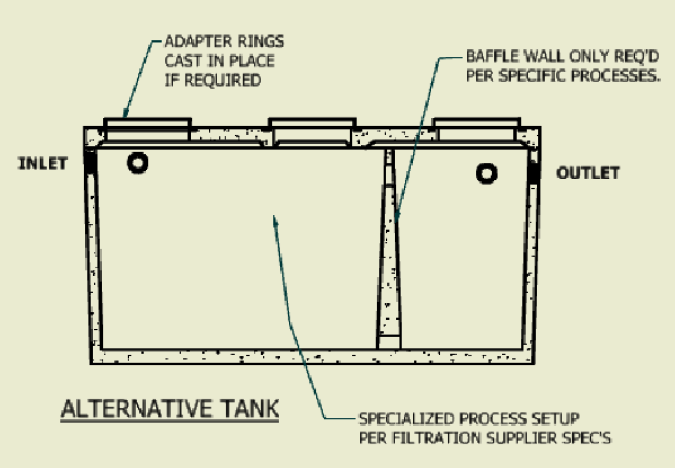

Alternative Tanks are innovative tanks which provide onsite treatment of wastewater, nitrogen removal & enable downstream leaching size reduction.They combine an ACME-Shorey style H20 Rated precast concrete tank with a vendor’s innovative filtration system. Several different brands are offered depending upon requirements.
Please talk to one of our customer service personnel for better details.
ACME SHOREY OFFERS THE FOLLOWING ALTERNATIVE TANK SIZES:
| Sct.14 | ITEM # | Alternative Systems - H20 | Ht. | Size | Capacity | Lbs | .dwg | |
|---|---|---|---|---|---|---|---|---|
| Sct. | Item # | Advantex (Orenco) | Ht. | L x W | Gallons | Lbs | .dwg | |
| 14 - 1.1 | AX20-152M | Advantex process tank w/baffle,Mono | 6' | 11'-6" x 6' | 1500 | 26,100 | DWG | |
| 14 - 1.2 | AX20-202LP | Advantex process tank w/baffle | 6'-2" | 13' x 7' | 2000 | 35,650 | DWG | |
| 14 - 1.3 | AX20-252LP | Advantex process tank w/baffle | 7'-2" | 13' x 7' | 2500 | 38,750 | DWG | |
| 14 - 1.4 | AX20D-102 | Advantex Discharge Pump Chamber,Mono | 6' | 7'-8" x 6' | 1000 | 17,100 | DWG | |
| 14 - 1.5 | AX20D-152 | Advantex Discharge Pump Chamber,Mono | 6' | 11'-6" x 6' | 1500 | 23,850 | DWG | |
| 14 - 1.6 | AX20D-252 | Advantex Discharge Pump Chamber,Mono | 8'-7" | 11' x 6' | 2693 | 33,500 | DWG | |
| 14 - 1.7 | AX20-252 | Advantex process tank w/baffle | 8'-7" | 11' x 6' | 2500 | 34,000 | DWG | |
| Sct. | Item # | Fast Tank (Bio-Microbics) | Ht. | L x W | Gallons | Lbs | .dwg | |
| 14 - 2.1 | FTIM152M | Fast Tank ,Fits Units.5,.75,.9, &1.0 (W/14"Top) | 6'-8" | 11'-6" x 6' | 1500 | 27,000 | DWG | |
| 14 - 2.2 | FTIM152MLP | Fast Tank Low Profile,Modif. Unit (W/std 6" Top) | 6' | 11'-6" x 6' | 1500 | 25,500 | DWG | |
| 14 - 2.3 | FTIM1.5 | Fast Tank ,1.5 internal mount ,2-Comp. | 7'-3" | 17' X 7' | 3,000 | 45,000 | DWG | |
| 14 - 2.4 | FTIM3.0 | Fast Tank 3.0 Internal Mount Single Comp. | 8'-6" | 11'-6" x 6' | 2,250 | 30,100 | DWG | |
| 14 - 2.5 | FTIM4.5 | Fast Tank 4.5 Internal Mount Single Comp. | 7'-5" | 17' X 10' | 4,218 | 64,900 | DWG | |
| 14 - 2.6 | FTIM9.0 | Fast Tank 9.0 Internal mount, single Comp. | 11'-11" | 17' X 10' | 9000 | 82,250 | DWG | |
| 14 - 2.7 | BP | Blower Pad , Fast Tank | 4" | 20" x 24" | X | 160 | DWG | |
| 14 - 2.8 | FTBV4 | Fast Tank ,Blower Vault | 3'-7" | 4'ID | X | 5,000 | DWG | |
| 14 - 2.9 | DB52SP | Inspection Box, 5 Outlet, Fast tank | 22" | 20" x 24" | X | 675 | DWG | |
| Sct. | Item # | Staar (Bio-Microbics) | Ht. | L x W | Gallons | Lbs | .dwg | |
| 14 - 3.1 | Staar.50-102-3P | Staar Septi Tank, .50-2 Comp, Mono (M400D) | 6' | 5'-3" X 9' | 1000 | 18,500 | DWG | |
| 14 - 3.2 | STaar152M | Staar Septi Tank (Fits Both Staar models .75 & 1.0 ) | 6' | 11'-6" x 6' | 1500 | 23,800 | DWG | |
| 14 - 3.3 | STaar1.2-202 | Staar Septi Tank (M1200D) | 6'-2" | 13' x 7' | 2000 | 27,500 | DWG | |
| 14 - 3.4 | STaar1.5-740 | STaar Septi Tank (M1500D) | 7'-9" | 7' x 17' | 4000 | 45,000 | DWG | |
| 14 - 3.5 | STaar3.0-1006 | STaar Septi Tank (M2500D) | 7'-11" | 10' x 17' | 6000 | 71,500 | DWG | |
| 14 - 3.6 | STaar4.5-1008 | STaar Septi Tank (M3000D) | 9'-11" | 10' x 17' | 8000 | 78,850 | DWG | |
| Sct. | Item # | Bio Barrier (Bio-Microbics) | Ht. | L x W | Gallons | Lbs | .dwg | |
| 14 - 4.1 | BB0.52 | Bio Barrier .50 | 6'-2" | 13' X 7' | 2000 | 33,750 | DWG | |
| 14 - 4.2 | BB1.02 | Bio Barrier 1.0 | 7'-9" | 7' x 17' | 4000 | 49,750 | DWG | |
| Sct. | Item # | NitROE (CES Cleanwater) | Ht. | L x W | Gallons | Lbs | .dwg | |
| 14 - 5.1 | Nitroe2KM-ST152M | Nitroe Septic Tank Mono (Settling) | 6' | 11'-6" x 6' | 1500 | 23,500 | DWG | |
| 14 - 5.2 | Nitroe2KM-SAC152M | Nitroe Septic Tank Mono (Submerged Aeration) | 6' | 11'-6" x 6' | 1500 | 23,500 | DWG | |
| 14 - 5.3 | Nitroe2KM-DC152M | Nitroe Septic Tank Mono (Denitrite) | 6' | 11'-6" x 6' | 1500 | 23,500 | DWG | |
| 14 - 5.4 | Nitroe2KS-152M | Nitroe Septic Tank Mono (Single WWTS) | 6' | 11'-6" x 6' | 1500 | 23,500 | DWG | |
| 14 - 5.5 | Nitroe2KS-202 | Nitroe Septic Tank , (Single WWTS) | x | 2000 | ||||
| Sct. | Item # | Other Alternative models Available | Ht. | L x W | Gallons | Lbs | .dwg | |
| 14 - 6.1 | WBSTPC1552 | Waterloo BioFilter Septic Tank | 6'-2" | 13' X 7' | 2000 | 31,500 | DWG | |
| 14 -7.1 | EL152M-120C | Eliminite Tank, Mono, W/Baffle | 6' | 11'-6" X 6' | 1500 | 25,500 | DWG | |
| Sct. | Item # | BioClere Pads | Ht. | Outer Dia. | Capacity | Lbs | .dwg | |
| 14 - 8.1 | BCP42 | BioClere Pad , Model 16 | 6" | 4' | Model 16 | 1,300 | DWG | |
| 14 - 8.2 | BCP82 | BioClere Pad ,Model 24 | 8" | 8' | Model 24 | 6,300 | DWG | |
| 14 - 8.3 | BCP102 | BioClere Pad ,Model 30 | 8" | 10' | Model 30 | 9,900 | DWG | |
| 14 - 8.4 | BCP122 | BioClere Pad ,Model 36 | 10" | 12' x 12' | Model 36 | 18,250 | DWG |
