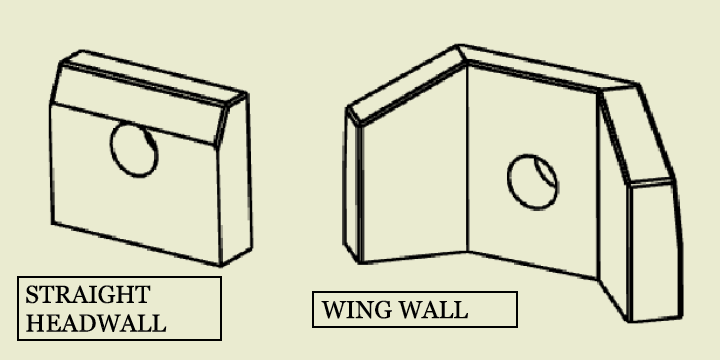

Headwalls are small retaining walls for the purpose of preventing soil erosion. They typically are placed at the inlet or outlet of a stormwater pipe. ACME SHOREY manufactures & stocks both straight & Wingwall products. We can mfg custom walls as well as add extended bases for increased stability. Please talk to one of our customer service personnel for better details.
TYPICAL SIZES OFFERED BUT CUSTOM SIZES AVAILABLE:
| Sct.16 | Description | ||||||
|---|---|---|---|---|---|---|---|
| Sct. | Item # | Straight Walls - H20 | Length | Ht. | Lbs | ||
| 16 -1.1 | SHW12-18 | Straight Head Wall 66"Lg | 66" | 54" | 5000 | ||
| 16 - 1.2 | SHW15-22 | Straight Head Wall 90"Lg | 90" | 60" | 7600 | ||
| 16 - 1.3 | SHW18-24 | Straight Head Wall 90" Lg | 90" | 60" | 7500 | ||
| 16 - 1.4 | SHW24-32 | Straight Head Wall 126" Lg | 126" | 68" | 11750 | ||
| 16 - 1.5 | SHW30-40 | Straight Head Wall 126" Lg | 126" | 76" | 12750 | ||
| Sct. | Item # | Wing wall | Length | Ht. | Lbs | ||
| 16 - 2.1 | WW12-6W | Wing Wall,6"Thk wall (16" HOLE FOR 12" RCP) | 8'-10" | 3' | 2000 | DWG |
