METER PITS – WELL PITS: These precast structures are below ground chambers for housing and protecting water meter equipment. Location is typically between a water main and a residence. Meter Pits work with town water lines and can service more than one line or household where Well Pits are for a well and usually specific to one household.
Please talk to one of our customer service personnel for better details.
| Sct 21 | ITEM # | Description | Height | Size | Cover | Rating | Wt (Lbs) | file | file |
|---|---|---|---|---|---|---|---|---|---|

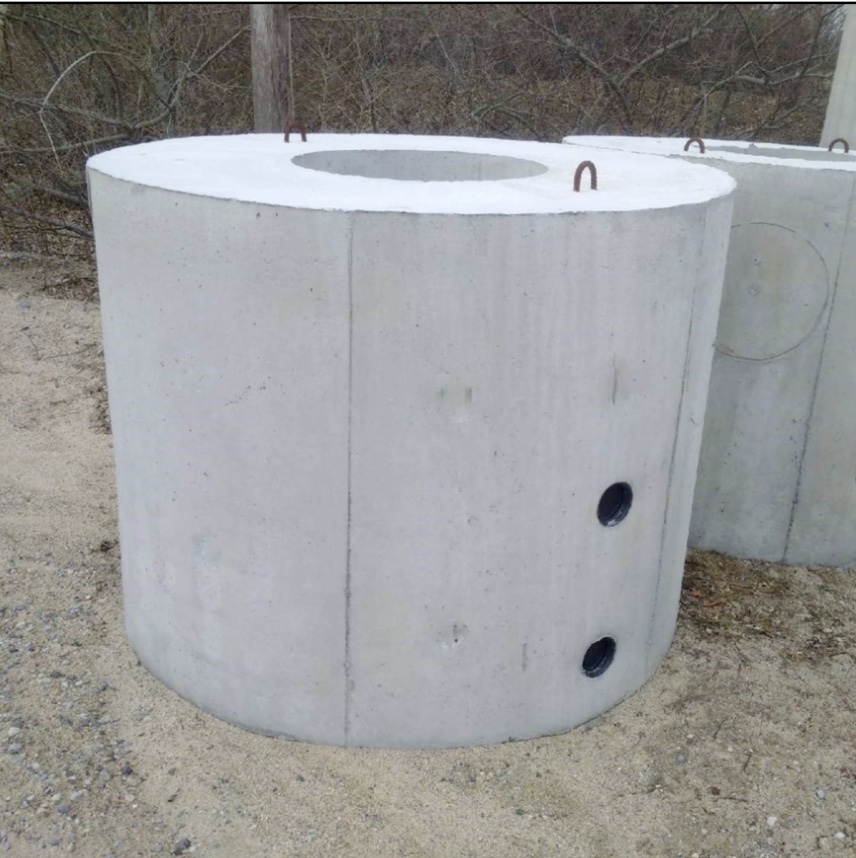

| Sct.21 | Item # | MeterPit-Well Pit (Open Bottom) | Ht. | O. Dia | Access | Rating | Lbs | .dwg | |
| 21 - 1.1 | MPWP6X42 | Meter Pit-Well Pit | 4'-8" | 6' | 30" Dia | 600 G | 5,000 | DWG | |
| 21 - 1.2 | MPWP6X62 | Meter Pit-Well Pit | 6'-8" | 6' | 30" Dia | 1000 G | 6,410 | DWG | |

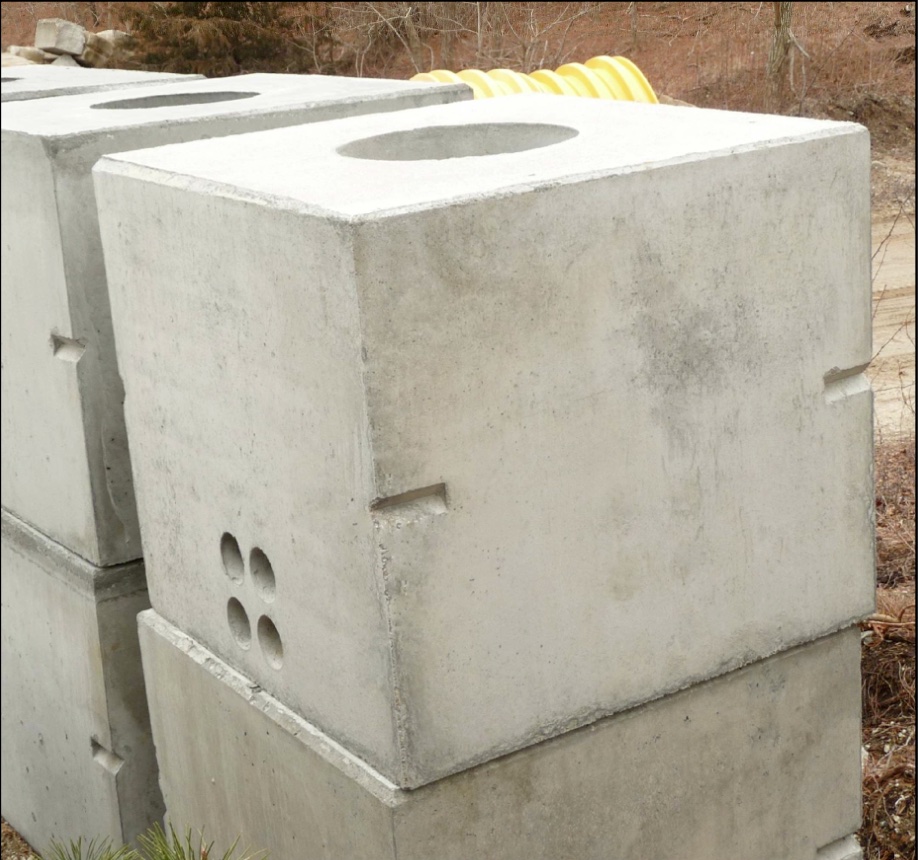

| Sct.21 | Item # | Meter Pits (Open Bottom) | Ht. | l x w | Access | Rating | Lbs | .dwg | |
| 21 - 2.1 | MPPT5X52 | Meter Pit - ProvinceTown Spec. , [(6) Terminators on 2 Sides] | 54" | 5' x 5' | 24" Dia | H20 | 6,900 | DWG | |
| 21 - 2.2 | MPPT6X62 | Meter Pit - ProvinceTown Spec. , [(6) Terminators on 2 Sides] | 48" | 6' x 6' | 24" Dia | H20 | 8,900 | DWG | |
| 21 - 3.1 | MP45X45 | Meter Pit (4) terminators on 2 sides | 48" | 45"X 45" | 24" Dia | H10 | 3,200 | DWG | |
| 21 - 4.1 | MP5X52 | Meter Pit (4) terminators on 2 sides | 54" | 5' X 5' | 24" Dia | H20 | 7,000 | DWG | |
| 21 - 4.2 | MP6X62 | Meter Pit (4) terminators on 2 sides | 48" | 6' x 6' | 24" Dia | H20 | 8,900 | DWG |
