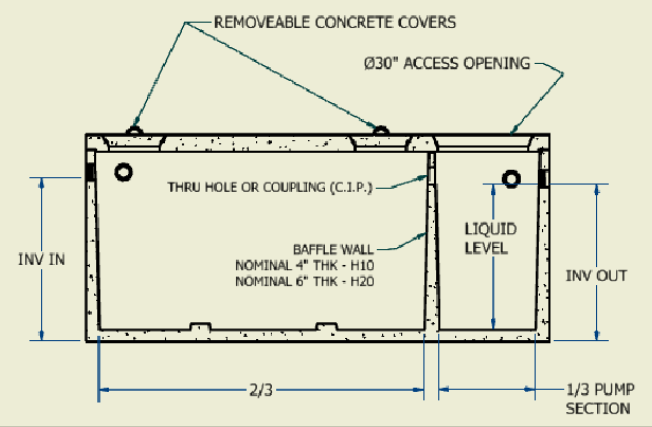

Multi-compartment tanks do a better job of removing suspended solids from wastewater than single compartment septic tanks. Some jurisdictions require that two compartment septic tanks be used. In a two compartment septic tank the wall separating the two compartments will have an opening that allows liquid effluent to flow into the second compartment, keeping floating scum and settled sludge in the first compartment.
Please talk to one of our customer service personnel for better details.
| SECT. | ITEM# | Multi-Compartment Tanks - H10 | Gallons | Lbs | .dwg | |
|---|---|---|---|---|---|---|
| 3 - 1.1 | STPC15MH | Septic Tank-Pump Chamber,Mono (6-'1" x 10'-2") w/24" Cover (1000/500) | 1500 | 14,000 | DWG | |
| 3 - 1.2 | STPC15M30H | Septic Tank-Pump Chamber,Mono (6-'1" x 10'-2") w/30" Access(1000/500) | 1500 | 14,000 | DWG | |
| 3 - 1.3 | STST15MH | Septic Tank-Septic Tank,Mono, (6-'1" x 10'-2") w/21" Cover (1000/500) | 1500 | 14,000 | DWG | |
| 3 - 2.1 | STPC15 | Septic Tank-Pump Chamber (5'-8" X 10'-6")w/24" Cover (1000/500) | 1500 | 13,000 | DWG | |
| 3 - 2.2 | STPC1530 | Septic Tank-Pump Chamber (5'-8" X 10'-6")w/30" access (1000/500) | 1500 | 13,000 | DWG | |
| 3 - 2.3 | STST15 | Septic Tank-Septic Tank (5'-8" X 10'-6") w/21" Cover (1000/500) | 1500 | 13,000 | DWG | |
| 3 - 3.1 | STPC20 | Septic Tank-Pump Chamber (6-'6" x 12') w/24" Cover (1500/500) | 2000 | 20,000 | DWG | |
| 3 - 3.2 | STPC2030 | Septic Tank-Pump Chamber (6-'6" x 12') w/30" Access (1500/500) | 2000 | 20,000 | DWG | |
| 3 - 3.3 | STST20 | Septic Tank-Septic Tank (6-'6" x 12') w/21" Cover (1/3-2/3 Location) | 2000 | 20,000 | DWG | |
| 3 - 4.1 | STPC20M | Septic Tank-Pump Chamber,(6-'10" x 12'-10") w/24" Cover (1500/500) | 2000 | 20,500 | DWG | |
| 3 - 4.2 | STPC20M30 | Septic Tank-Pump Chamber, (6-'10" x 12'-10") w/30" Access (1500/500) | 2000 | 20,500 | DWG | |
| 3 - 4.3 | STST20M | Septic Tank-Septic Tank (6-'10" x 12'-10") w/21" Cover (1/3-2/3 Location) | 2000 | 20,500 | DWG | |
| 3 - 5.1 | STPC25LP | Septic Tank-Pump Chamber (6-'6" x 12') w/24" Cover (1000/1500) | 2500 | 24,000 | DWG | |
| 3 - 5.2 | STPC25LP30 | Septic Tank-Pump Chamber (6-'6" x 12') w/30" Access (1000/1500) | 2500 | 24,000 | DWG | |
| 3 - 5.3 | STST25LP | Septic Tank-Septic Tank (6-'6" x 12') w/21" Cover (1/3-2/3 Location) | 2500 | 24,000 | DWG | |
| 3 - 6.1 | STPC25 | Septic Tank-Pump Chamber (6-'4" x 11'-10") w/24" Cover (1000/1500) | 2500 | 24,250 | DWG | |
| 3 - 6.2 | STPC2530 | Septic Tank-Pump Chamber (6-'4" x 11'-10") w/30" Access 1000/1500) | 2500 | 24,250 | DWG | |
| 3 - 6.3 | STST25 | Septic Tank-Septic Tank (6-'4" x 11'-10") w/21" Cover (1/3-2/3 Location) | 2500 | 24,250 | DWG | |
