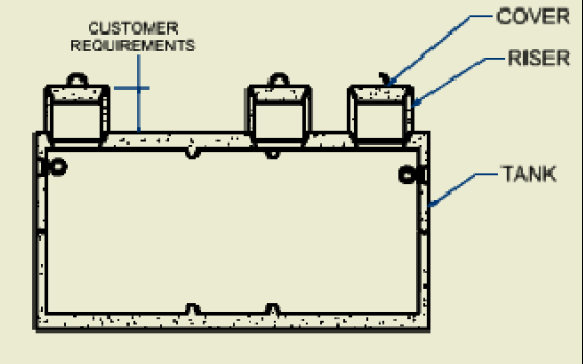

Risers are for the purpose of raising the height of an existing precast concrete cover product where the Covers provide easier access to the tank for inspection and service. ACME SHOREY manufactures & stocks a complete line of H20 rated precast concrete risers & covers to suit existing tank structures. We also offer innovative products such as a square riser to suit 24″ round & square hatch products. Please talk to one of our customer service personnel for better details.
ACME SHOREY OFFERS THE FOLLOWING SIZES:
| Sct. | Item # | Tank Risers and Covers - H20 | Ht. | Size | Lbs | |
|---|---|---|---|---|---|---|
| Sct. | Item # | 24" ID Round Risers | Ht. | Size | Lbs | |
| 13 - 1.1 | R24 X06 | Round Riser, 24"id | 6" | 34"od | 225 | |
| 13 - 1.2 | R24 X12 | Round Riser, 24"id | 12" | 34"od | 450 | |
| 13 - 1.3 | R24 X18 | Round Riser, 24"id | 18" | 34"od | 675 | |
| 13 - 1.4 | R24 X24 | Round Riser, 24"id | 24" | 34"od | 900 | |
| 13 - 1.5 | R24 X36 | Round Riser, 24"id | 36" | 34"od | 1350 | |
| 13 - 1.6 | R24 X48 | Round Riser, 24"id | 48" | 34"od | 1800 | |
| Sct. | Item # | 24" ID Square Risers - H20 | Ht. | Size | Lbs | |
| 13 - 2.1 | RSQ 04 | Square Risers. (Fits 24" id ring) | 4" | 42.5"x 42.5" | 435 | |
| 13 - 2.2 | RSQ 06 | Square Risers. (Fits 24" id ring) | 6" | 42.5"x 42.5" | 653 | |
| 13 - 2.3 | RSQ 10 | Square Risers. (Fits 24" id ring) | 10" | 42.5"x 42.5" | 1088 | |
| Sct. | Item # | 30" ID Round Risers X 4" Wall - H20 | Ht. | Size | Lbs | |
| 13 - 3.1 | R30X6 | Round Riser, 30"id | 6" | 38"od | 212 | |
| 13 - 3.2 | R30X12 | Round Riser, 30"id | 12" | 38"od | 424 | |
| 13 - 3.3 | R30X24 | Round Riser, 30"id | 24" | 38"od | 848 | |
| 13 - 3.4 | R30X36 | Round Riser, 30"id | 36" | 38"od | 1272 | |
| 13 - 3.5 | R30X48 | Round Riser, 30"id | 48" | 38"od | 1696 | |
| Sct. | Item # | 30" ID Round Risers X 8" Wall - H20 | Ht. | Size | Lbs | |
| 13 - 4.1 | R30x6-8 | Round Riser, 30"id | 6" | 46" od | 500 | |
| 13 - 4.2 | R30x12-8 | Round Riser, 30"id | 12" | 46" od | 1000 | |
| 13 - 4.3 | R30x24-8 | Round Riser, 30"id | 24" | 46" od | 2000 | |
| Sct. | Item # | Risers - H20 | Ht. | Size | Lbs | |
| 13 - 5.1 | R24X06FH | Riser, 24"id x 6" Ht, w/2"dia coupling | 6" | 24"id | 250 | |
| 13 - 5.2 | R30X06FH | Riser, 30"id x 6" Ht, w/2"dia coupling | 6" | 30"id | 240 | |
| 13 - 6.1 | R2424DOG | Riser 24"ID X 24"Ht w/Doghouse | 24" | 24"id | 850 | |
| 13 - 6.2 | R24x24DOG-2 | Riser 24"ID X 24"Ht w/2 Doghouses | 24" | 24"id | 840 | |
| Sct. | Item # | Covers - H20 | Ht. | Size | Lbs | |
| 13 - 7.1 | SC332 | Special Cover, Heavy Duty (Includes 21" ctr cover) | 6" | 33"od | 445 | |
| 13 - 7.2 | C322 | Cover, Flat | 5" | 32"od | 350 | |
| 13 - 7.3 | C362 | Cover, Flat | 5" | 36"od | 450 | |
| 13 - 7.4 | C62 | Cover(24" dia Access hole in Ctr) | 8" | 72"od | 2520 | |
| 13 - 7.5 | C62O | Cover(24" dia Access hole Offset ) | 8" | 72"od | 2520 | |
| 13 - 7.6 | C82 | Cover(Small Access hole in Ctr) | 8" | 96"od | 4750 |
