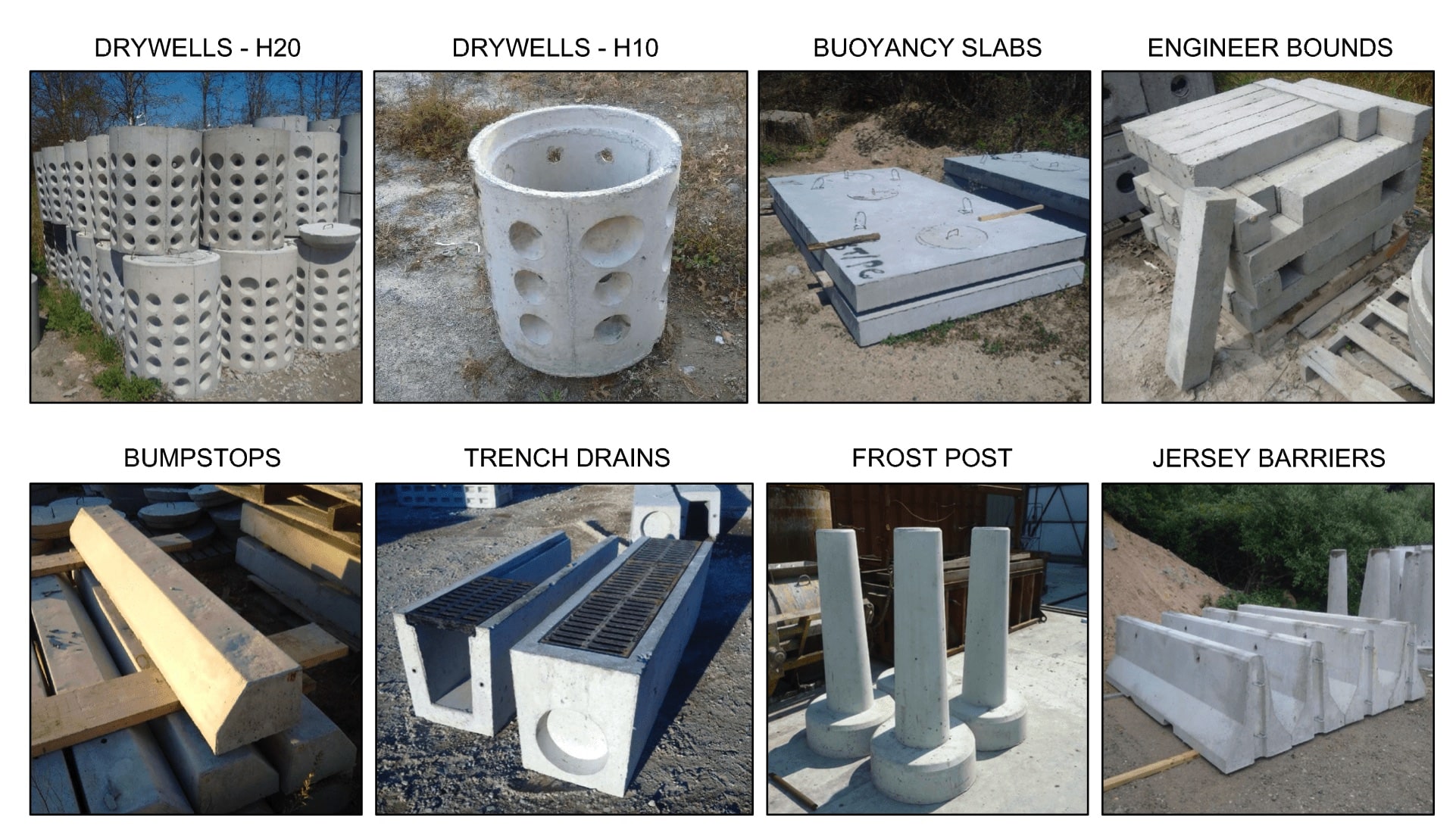

Miscellaneous Building Products: This section is where smaller precast products are grouped that can help the builder accommodate unique job requirements. Product uses range from surveyor markers to roadway barricades to smaller volume drainage applications.
Please talk to one of our customer service personnel for better details.
| Sct 19 | ITEM # | Miscellaneous Building Products | Lgth | Size | Capacity | Lbs | .dwg | |
|---|---|---|---|---|---|---|---|---|
| Sct. | Item # | Drywells (Drainage) | Ht. | I. D. | Gallons | Lbs | .dwg | |
| 19 - 1.1 | DW24 | Drywell-H10 W/21” access | 24" | ø24 " | 25 | 370 | DWG | |
| 19 - 1.2 | DW382 | Drywell-H20 w/cover | 38.5" | ø30 " | 65 | 850 | DWG | |
| Sct. | Item # | Slabs (Buoyancy assist) | Ht. | L x W | n/a | Lbs | .dwg | |
| 19 - 2.1 | TS10 | Bouyancy Slab , (Typ. 1000 Gallon Size Tank ) | 6" | L X W | n/a | TBD | DWG | |
| 19 - 2.2 | TS15 | Bouyancy Slab , (Typ. 1500 Gallon Size Tank) | 6" | L X W | n/a | TBD | DWG | |
| Sct. | Item # | Engineering Bounds (survey Markers) | Ht. | L x W | n/a | Lbs | .dwg | |
| 19 - 3.1 | EB5 | Engineering Bounds 5" x 5" | 30" | 5" x 5" | n/a | 70 | DWG | |
| Sct. | Item # | Bump Stop (Car Parking) | Lgth | L x W | n/a | Lbs | .dwg | |
| 19 - 4.1 | BS6 | Bump Stop | 6' | 6" x 10" | n/a | 332 | DWG | |
| Sct. | Item # | Trench Drain | Ht. | L x W | Options | Lbs | DWG | |
| 19 - 5.1 | TD6E | End Section , One open end | 22" | 6'-4" x 19.5" | w/Grate | 1,425 | ||
| 19 - 5.2 | TD6C | Middle Section , Both open ends | 22" | 6' x 19.5" | w/Grate | 1,310 | ||
| 19 - 5.3 | TD3E | End Section- , One open end | 22" | 3'-4" x 19.5" | w/Grate | 770 | ||
| 19 - 5.4 | TD6DE | Double End Section , Both Closed ends | 22" | 6'-8" x 19.5" | w/Grate | 1,550 | ||
| 19 - 5.5 | TDG1424 | Grate Only | 2" | 14" x 24" | n/a | 60 | ||
| Sct. | Item # | Frost Post | Ht. | Base | Top | Lbs | .dwg | |
| 19 - 6.1 | FFP5 | Frost Post ,10"dia top x 6' Ht,1/2"coil insert | 60" | ø28" | ø10" | 1,100 | DWG | |
| 19 - 6.2 | FFPLE.50 | Lifting Eyebolt, .50 Coil Thread | 6" | 3" lg thd | 1.5" eye | 4 | DWG | |
| Sct. | Item # | Jersey Barrier | Ht. | L x W | n/a | Lbs | .dwg | |
| 19 - 8.1 | Jersey Barrier | Jersey Barrier | 32" | 2' x 10' | n/a | 4,175 | DWG | |
| 19 - 8.2 | Mbarrier | Mini Barrier | 32" | 2' x 2' | n/a | X | ||
| Sct. | Item # | PAD | Ht. | L x W | n/a | Lbs | .dwg | |
| 19 - 9.1 | PAD-RE | PAD , RECT SHAPE | T | L X W | n/a | TBD | DWG | |
| 19 - 9.2 | PAD-SQ | PAD , SQUARE SHAPE | T | L X W | n/a | TBD | DWG |
