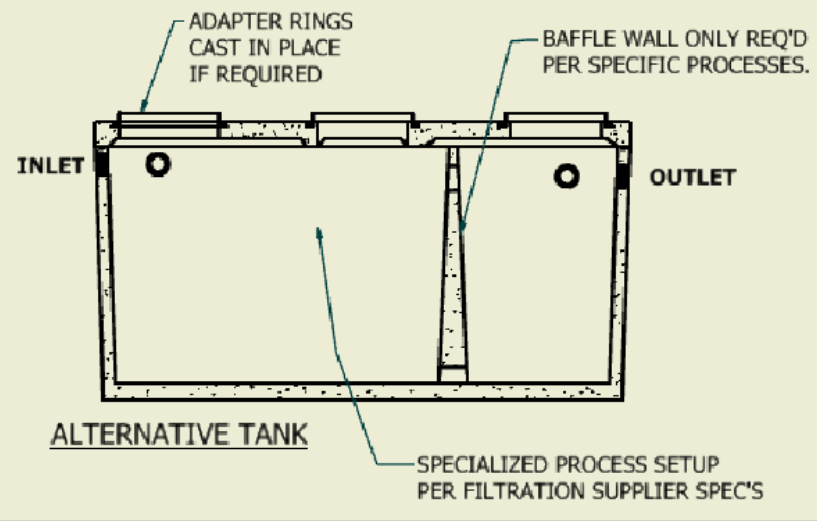

Alternative Tanks are innovative tanks which provide onsite treatment of wastewater, nitrogen removal & enable downstream leaching size reduction.They combine an ACME-Shorey style precast concrete tank with a vendor’s innovative filtration system. Several different brands are offered depending upon requirements.
Please talk to one of our customer service personnel for better details.
| SECT. | ITEM# | ALTERNATIVE TANKS - H10 | Gallons | Lbs | .dwg | |||
|---|---|---|---|---|---|---|---|---|
| Sct. | Item # | Advantex (Orenco) | Ht. | L x W | Gallons | Lbs | .dwg | |
| 7 - 1.1 | AX20-15M | Advantex Process Tank,Mono w/baffle | 5'-8" | 10'-2" x 6'-1" | 1500 | 14,000 | DWG | |
| 7 - 1.2 | AX20-20M | Advantex Process Tank,Mono w/baffle | 5'-9" | 12'-10"x6'-10" | 2000 | 20,600 | DWG | |
| 7 - 1.3 | AX20-25 | Advantex Process Tank, w/baffle | 7'-4" | 11'-10" X 6'-4" | 2500 | 25,000 | DWG | |
| 7 - 1.4 | AX20D-10M | Advantex Discharge tank, Mono | 5'-8" | 8'-3"x5'-5" | 1000 | 8,500 | DWG | |
| 7 - 1.5 | AX20D-15M | Advantex Discharge tank, Mono | 5'-7" | 10'-2" x 6'-1" | 1500 | 12,000 | DWG | |
| Sct. | Item # | Eliminite Tank | Ht. | L x W | Gallons | Lbs | ||
| 7 - 2.1 | EL15M-120C | Eliminite mono Tank W/Baffle | 5'-8" | 10'-10"x5'-8" | 1500 | 13,500 | DWG | |
| 7 - 2.2 | EL20M-120C | Eliminite mono Tank W/Baffle | 5'-8" | 12'-10"x6'-10" | 2000 | 21,800 | DWG | |
| Sct. | Item # | Singulair (Norweco) | Ht. | L x W | Gallons | Lbs | ||
| 7 - 3.1a | SG500MEB | Singulair bio-kinetic mono tank w/6x6eb,-500 gpd | 6'-1" | 9'-3" X 6' | 1375 | 16,500 | DWG | |
| 7 - 3.1b | SGRPK500 | SGRisers & Covers PKGS(SIZE 500) | ||||||
| 7 - 3.2a | SG500M | Singulair bio-kinetic mono tank-500 gpd | 6'-1" | 9'-3" X 6' | 1375 | 14,000 | DWG | |
| 7 - 3.2b | SGRPK500 | SGRisers & Covers PKGS(SIZE 500) | ||||||
| 7 - 3.3a | SG750LP | Singulair bio-kinetic tank-750 gpd | 6' | 12'-2" X 6' | 1500 | 16,250 | DWG | |
| 7 - 3.3b | SGRPK750 | SGRisers & Covers PKGS(SIZE 750) | ||||||
| 7 - 3.6c | SG750LPEB | |||||||
| 7 - 3.4a | SG1000M | Singulair bio-kinetic tank-1000 gpd | 6'-1" | 9'-3" X 6' | 1375 | 14,000 | DWG | |
| 7 - 3.4b | SGRPK1000 | SGRisers & Covers PKGS(SIZE 1000) | ||||||
| 7 - 3.5a | SG1250LP | Singulair bio-kinetic tank-1250 gpd | 6' | 12'-2" X 6' | 1350 | 16,250 | DWG | |
| 7 - 3.5b | SGRPK1250 | SGRisers & Covers PKGS(SIZE 1250) | ||||||
| 7 - 3.6a | SG1500LP | Singulair bio-kinetic tank-1500 gpd | 6'-7" | 12'-2" X 6' | 1600 | 19,250 | DWG | |
| 7 - 3.6b | SGRPK1500 | SGRisers & Covers PKGS(SIZE 1500) | DWG | |||||
| 7 - 3.8 | SGPRE10M | Singulair 1000 Pretreatment Tank | 5'-8" | 8'-3" x 5'-5" | 1000 | 8,500 | DWG | |
| 7 - 3.9 | SGPRE15M | Singulair 1500 Pretreatment Tank | 5'-8" | 10'-10" x 5'-8" | 1500 | 12,000 | DWG | |
| 7 - 3.9b | SGPRE15MEB | Singulair 1500 Pretreatment Tank | ||||||
| Sct. | Item # | Fast Tank (Bio-Microbics) | Ht. | L x W | Gallons | Lbs | ||
| 7 - 4.1 | FT15M0.5H | Fast Tank,Mono, .50 (Top Mtd in Lid) | 5'-8" | 10'-2" x 6'-1" | 1500 | 13,750 | DWG | |
| 7 - 4.2 | FT15M0.75H | Fast Tank,Mono, .75 (Top Mtd in Lid) | 5'-8" | 10'-2" x 6'-1" | 1500 | 13,500 | DWG | |
| 7 - 4.3 | FT15M0.9H | Fast Tank, Mono, .90 (Top Mtd in Lid) | 5'-8" | 10'-2" x 6'-1" | 1500 | 13,500 | DWG | |
| 7 - 4.4 | FT15M1.0H | Fast Tank, Mono, 1.0 (Top Mtd in Lid) | 5'-8" | 10'-2" x 6'-1" | 1500 | 13,500 | DWG | |
| 7 - 5.1 | FTIM15MLPH | Fast Tank,Internal Mount (Model 0.5,0.75,0.9 or 1.0) | 5'-8" | 10'-2" x 6'-1" | 1500 | 14,000 | DWG | |
| Sct. | Item # | Staar (Bio-Microbics) | Ht. | L x W | Gallons | Lbs | ||
| 7 - 6.1 | STaar.50-10M | STaar .50.Mono (MODEL# M400D) | 5'-8" | 8'-3"x5'-5" | 1000 | 9,930 | DWG | |
| 7 - 6.2 | STaar15M | STaar Mono ( MODELS # .75 (M550) or 1.0 (M750)) | 5'-8" | 10'-2" x 6'-1" | 1500 | 13,200 | DWG | |
| 7 - 6.3 | STaar1.2-20M | STaar 1.2,Mono (MODEL# M750D) | 5'-9" | 12'-10"x6'-10" | 2000 | 19,800 | DWG | |
| Sct. | Item # | KleanTu - CES | Ht. | L x W | Gallons | Lbs | ||
| 7 - 7.1 | NitROE2KM-ST15M | NITroe Septic Tank,Mono ,(Settling) | 5'-8" | 5'-8" x 10'-10" | 1500 | 12,500 | DWG | |
| 7 - 7.2 | NitROE2KM-SAC15M | NITroe Septic Tank,Mono,(Submerged aeration) | 5'-8" | 5'-8" x 10'-10" | 1500 | 12,500 | DWG | |
| 7 - 7.3 | NitROE2KM-DC15M | NITroe Septic Tank,Mono ,(Denitrite) | 5'-8" | 5'-8" x 10'-10" | 1500 | 12,500 | DWG | |
| 7 - 7.4 | NitROE2KS-15M | NITroe Septic Tank,Mono (Single WWTS) | 5'-8" | 5'-8" x 10'-10" | 1500 | 12,500 | DWG | |
| 7 - 7.5 | NitROE2KS-20M | NITroe Septic Tank,Mono ,(Single WWTS) | 5'-9" | 12'-10"x6'-10" | 2000 | 19,000 | DWG | |
| Sct. | Item # | Other Alternative models Available | Ht. | L x W | Gallons | Lbs | ||
| 7 - 8.1 | WSTPC155M | Waterloo BioFilter Tank | 5'-9" | 12'-10"x6'-10" | 2000 | 22,000 | DWG | |
| Sct. | Item # | Bio-Barrier (Bio-Microbics) | Ht. | L x W | Gallons | Lbs | ||
| 7 - 9.1 | BB0.5 | Bio barrier, 0,5 Model | 5'-9" | 12'-10"x6'-10" | 2000 | 21,000 | DWG |
