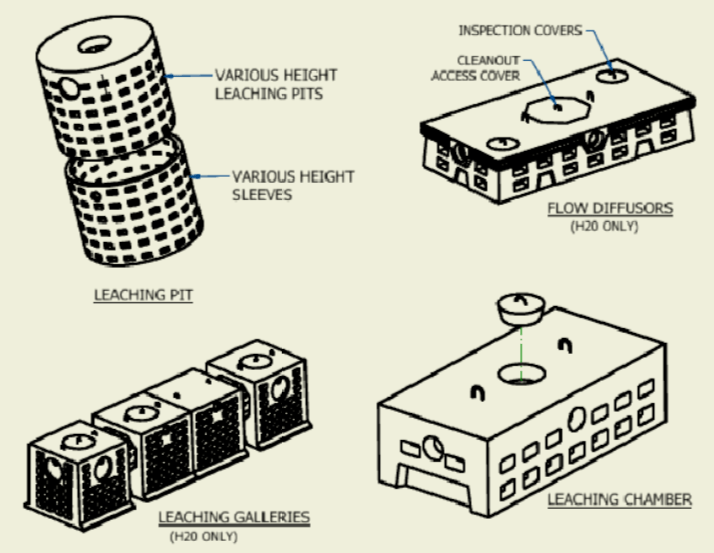

The Leaching system is probably the most important part of any subsurface sewage disposal system: The effluent entering the Leaching system must be free of sludge or undigested sewage particles so the liquid can be absorbed into the soil. In passing thru the soil, sewage is acted upon by bacteria in the presence of air. This aerobic action purifies the effluent and destroys disease causing bacteria. ACME-SHOREY manufactures and stocks several styles of H20 rated Leaching structures ie. Flow Diffusers, Leaching chambers, Leaching pits, and Leaching galleries. The choice of the most effective leaching system should depend on soil characteristics, ground water, available space, site topography and anticipated flows.
Please talk to one of our customer service personnel for better details.
ACME SHOREY OFFERS THE FOLLOWING LEACHING CHAMBER SIZES:
| SECT. | ITEM# | Leaching Products - H20 | Ht. | Size | Gallons | Lbs | .dwg | |
|---|---|---|---|---|---|---|---|---|
| SECT. | ITEM# | Flow Diffusors | Ht. | L x W | Gallons | Lbs | .dwg | |
| 12 - 1.1 | FDD2 | Flow Diffusor 'D' Model | 1'-6" | 8' x 4' | 180 | 2400 | DWG | |
| 12 - 1.2 | FDDLP2 | Flow Diffusor 'D' Model,Low Profile | 1'-1" | 8' x 4' | 100 | 2100 | DWG | |
| 12 - 1.3 | FDL2 | Flow Diffusor 'L' Model (long side entry) | 1'-6" | 8' x 4' | 180 | 2450 | DWG | |
| 12 - 1.4 | FDS2 | Flow Diffusor 'S' Model (short side entry) | 1'-6" | 8' x 4' | 180 | 2450 | DWG | |
| SECT. | ITEM# | Galley Chambers - H20 | Ht. | L x W | Gallons | Lbs | .dwg | |
| 12 - 2.1 | GCA | Galley Chamber Assembly | 4' | n/a | n/a | n/a | DWG | |
| 12 - 2.2 | GC4S2 | Galley Chamber,4 leaching sides | 4' | 4'-7"x 4' | 310 | 2000 | DWG | |
| 12 - 2.3 | GCCC2 | Galley Chamber Ctr W/Cover,2 leach sides | 4' | 4'-7"x 4' | 310 | 2020 | DWG | |
| 12 - 2.4 | GCE2 | Galley Chamber End W/Cover,3 leach sides | 4' | 4'-7"x 4' | 310 | 2020 | DWG | |
| SECT. | ITEM# | Leaching Chambers - H20 | Ht. | L x W | Gallons | Lbs | .dwg | |
| 12 - 3.1 | LC1252 | Leaching Chamber | 22" | 3' x 6' | 125 | 1900 | DWG | |
| 12 - 3.2 | LC52 | Leaching Chamber,Septic w/(4) Ø5 K.O. | 34" | 8'-6" X 4'-10" | 500 | 4800 | DWG | |
| 12 - 3.3 | LC52KO | Leaching Chamber,Drainage w/(3) Ø18" K.O. | 34" | 8'-6" X 4'-10" | 500 | 4800 | DWG | |
| SECT. | ITEM# | Leaching Pits & Sleeves - H20 | Ht. | Size | Gallons | Lbs | .dwg | |
| 12 - 4.1 | LP22 | Leaching Pit | 2'-8" | ø6'od | 200 | 3850 | DWG | |
| 12 - 4.2 | LP62 | Leaching Pit w/18" knockout | 4'-8" | ø6'od | 600 | 4850 | DWG | |
| 12 - 4.3 | LP102 | Leaching Pit w3/18" knockout | 6'-8" | ø6'od | 1000 | 6200 | DWG | |
| 12 - 4.4 | LPOS102 | Leaching Pit, w/offset access opening | 6'-8" | ø6'od | 1000 | 5800 | DWG | |
| 12 - 5.1 | LS4 | Leaching Sleeve,4'Ht. (stackable) | 4' | ø6'od | 600 | 2400 | DWG | |
| 12 - 5.2 | LS6 | Leaching Sleeve, 6'Ht. (stackable) | 6' | ø6'od | 1000 | 3300 | DWG | |
| 12 - 6.1 | LPLP102 | Leaching Pit,Low Profile | 5'-4" | ø7'od | 1000 | 6800 | DWG | |
| 12 - 7.1 | LP822 | Leaching Pit w/(2) Ø18" K.O. | 2'-8" | ø8'od | 500 | 7000 | DWG | |
| 12 - 7.2 | LP842 | Leaching Pit w/(3) Ø18" K.O. | 4'-8" | ø8'od | 1000 | 9560 | DWG | |
| 12 - 7.3 | LP862 | Leaching Pit w/(3) Ø18" K.O. | 6'-8" | ø8'od | 1500 | 11880 | DWG | |
| 12 - 7.4 | LP882 | Leaching Pit w/(3) Ø18" K.O.-(LP842+LS842) | 8'-8" | ø8'od | 2000 | 14100 | DWG | |
| 12 - 7.5 | LP8102 | Leaching pit (LP862 + LS842) | 10'-8" | ø8'od | 2500 | 16440 | DWG | |
| 12 - 7.6 | LP8122 | Leaching pit#LP862 w/sleeve#LS862 | 12'-8" | ø8'od | 3000 | 18725 | DWG | |
| 12 - 8.1 | LS842 | Leaching Sleeve | 4' | ø8'od | 1000 | 4560 | DWG | |
| 12 -8.2 | LS862 | Leaching Sleeve | 6' | ø8'od | 1500 | 6845 | DWG | |
| SECT. | ITEM# | Pit Tops & Bottoms - H20 | Ht. | Size | Gallons | Lbs | .dwg | |
| 12 - 9.1 | C6 | Slab Cover 6' O.D.,Leaching Pit | 8" | 6'od | N/A | 2520 | DWG | |
| 12 - 9.2 | C8 | Slab Cover 8' O.D.,Leaching pit | 8" | 8'od | N/A | 4720 | DWG | |
| 12 - 9.3 | B8 | Base 8' O.D.,Leaching Pit | 8" | 8'od | N/A | 5020 | DWG | |
| SECT. | ITEM# | Drywells (Drainage) | Ht. | I. D. | Gallons | Lbs | .dwg | |
| 12 - 10.1 | DW24 | Drywell-H10 W/21” access | 24" | ø24 " | 25 | 370 | DWG | |
| 12 -10.2 | DW382 | Drywell-H20 W/cover | 38.5" | ø30 " | 65 | 850 | DWG |
